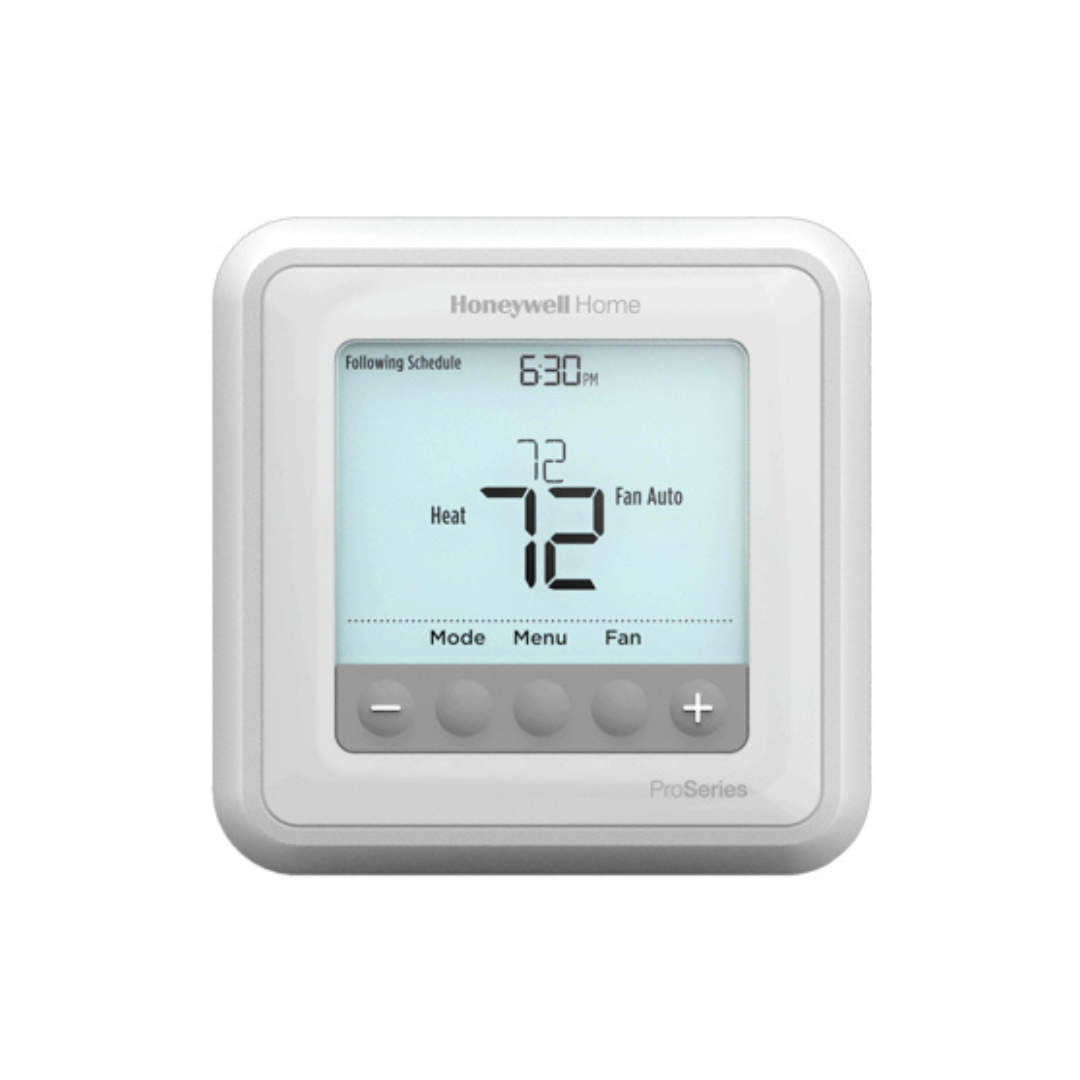

Thermostat
Type 7/5-1-1/5-2 Day Programmable, 2-Heat/1-Cool Heat Pump, 1-Heat/1-Cool Conventional
Cover Type Square
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heating), 0.02 to 0.05 Amp (Fan)
Switch Type Relay
Temperature Rating 37 to 102 Deg F
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Type 5.44 Square Inch Large/Soft Key Control
Changeover Auto/Manual
Power Method Battery/Hardwired
Switch Position Heat-Off-Cool-Auto-EM (System), Auto-On-Circ-Follow Schedule (Fan)
Humidity Range 5 to 90 Percent RH (Non-Condensing)
Includes Thermostat, UWP Mounting System, Installation (J-Box) Adapter, Small Decorative Cover Plate, Screw and Anchor, Installation Guide, User Guide, (2) AA Battery
Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat Pump
